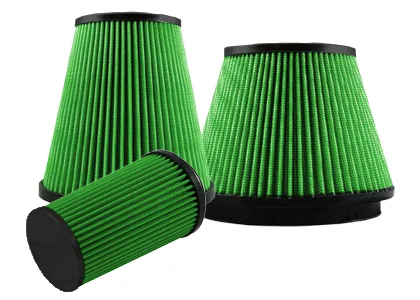

 Click here for a picture showing how cone and cylinder filters are measured. |
All measurements are in inches.
| Filter Number |
Inlet Diameter (ID) | Height (H) |
Outside Diameter - Base (OD-B) |
Outside Diameter - Top (OD-T) |
Style | End Cap | Inlet Type | Color |
|---|---|---|---|---|---|---|---|---|
| 2007 | 3.75 | 9.50 | 6.00 | 6.00 | Cylinder | Rubber | Straight | Green |
| 2024 | 3.50 | 6.50 | 5.50 | 4.00 | Cone | Straight | Green | |
| 2031 | 3.50 | 9.00 | 5.50 | 4.00 | Cone | Straight | Green | |
| 2037 | 4.00 | 9.00 | 5.50 | 4.75 | Cone | Rubber | Straight | Green |
| 2040 | 3.00 | 9.00 | 5.50 | 4.75 | Cone | Rubber | Straight | Green |
| 2041 | 3.00 | 4.00 | 4.38 | 4.38 | Cylinder | Rubber | Straight | Green |
| 2047 | 3.00 | 6.00 | 5.50 | 4.00 | Cone | Straight | Green | |
| 2061 | 3.00 | 5.00 | 4.75 | 4.75 | Cylinder | Rubber | Straight | Green |
| 2062 | 0.31 | 1.13 | 1.38 | 1.38 | Cylinder | Straight | Green | |
| 2076 | 1.00 | 1.50 | 2.00 | 2.00 | Cylinder | Rubber | Straight | Green |
| 2079 | 0.59 | 2.00 | 1.38 | 1.38 | Cylinder | Rubber | Straight | Green |
| 2084 | 3.00 | 7.88 | 5.50 | 4.75 | Cone | Straight | Green | |
| 2088 | 0.50 | 2.00 | 1.38 | 1.38 | Cylinder | Rubber | Straight | Green |
| 2094 | 2.56 | 6.00 | 4.00 | 4.00 | Cylinder | Straight | Green | |
| 2099 | 3.00 | 6.75 | 4.75 | 4.75 | Cylinder | Rubber | Straight | Green |
| 2110 | 0.75 | 2.00 | 2.17 | 2.00 | Cylinder | Rubber | Straight | Green |
| 2111 | 0.39 | 1.50 | 2.00 | 2.00 | Cylinder | Rubber | Straight | Green |
| 2114 | 4.00 | 6.00 | 5.50 | 4.00 | Cone | Straight | Green | |
| 2115 | 0.59 | 1.50 | 2.00 | 2.00 | Cylinder | Straight | Green | |
| 2123 | 2.59 | 6.00 | 5.50 | 5.50 | Cylinder | Rubber | None | |
| 2126 | 1.50 | 2.50 | 3.00 | 3.00 | Cylinder | Rubber | Straight | Green |
| 2133 | 3.15 | 6.00 | 5.50 | 4.00 | Cone | Straight | Green | |
| 2139 | 2.75 | 7.00 | 5.50 | 4.75 | Cone | Straight | Green | |
| 2169 | 4.00 | 13.75 | 5.50 | 4.75 | Cone | Straight | Green | |
| 2171 | 2.36 | 6.00 | 5.50 | 4.75 | Cone | Straight | Green | |
| 2180 | 2.44 | 4.00 | 3.88 | 3.88 | Cylinder | Rubber | Straight | Green |
| 2182 | 2.44 | 4.00 | 3.88 | 3.88 | Cylinder | Rubber | Angled | |
| 2183 | 2.44 | 6.00 | 4.00 | 4.00 | Cylinder | Rubber | Angled | |
| 2184 | 2.44 | 4.00 | 4.75 | 4.75 | Cylinder | Rubber | Straight | Green |
| 2185 | 2.44 | 5.00 | 4.75 | 4.75 | Cylinder | Straight | Green | |
| 2198 | 1.38 | 2.50 | 3.00 | 3.00 | Cylinder | Rubber | Straight | Green |
| 2216 | 3.00 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2281 | 3.00 | 5.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2283 | 3.00 | 5.00 | 4.75 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2301 | 2.75 | 5.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2302 | 3.15 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2311 | 4.50 | 6.00 | 6.00 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2313 | 6.00 | 5.50 | 7.50 | 4.75 | Cone | Straight | Green | |
| 2330 | 1.57 | 3.13 | 2.75 | 2.75 | Cylinder | Rubber | Straight | Green |
| 2347 | 3.00 | 9.00 | 5.50 | 5.00 | Cone | Rubber | Straight | Green |
| 2352 | 2.50 | 5.00 | 6.00 | 5.00 | Cone | Rubber | Radius | Green |
| 2353 | 2.75 | 5.00 | 6.00 | 5.00 | Cone | Rubber | Radius | Green |
| 2354 | 3.00 | 5.00 | 6.00 | 5.00 | Cone | Rubber | Radius | Green |
| 2356 | 3.50 | 5.00 | 6.00 | 5.00 | Cone | Rubber | Radius | Green |
| 2357 | 4.00 | 5.00 | 6.00 | 5.00 | Cone | Rubber | Radius | Green |
| 2374 | 4.50 | 6.00 | 5.50 | 4.75 | Cone | Rubber | Straight | Green |
| 2375 | 4.50 | 8.00 | 7.88 | 4.75 | Cone | Straight | Green | |
| 2380 | 6.00 | 14.00 | 7.50 | 4.75 | Cone | Straight | TBA | |
| 2381 | 6.00 | 10.00 | 7.50 | 4.75 | Cone | Straight | Green | |
| 2382 | 6.00 | 8.00 | 7.50 | 4.75 | Cone | Rubber | Straight | Green |
| 2383 | 6.00 | 4.00 | 7.50 | 4.75 | Cone | Straight | Green | |
| 2384 | 5.00 | 9.00 | 6.00 | 6.00 | Cylinder | Straight | Green | |
| 2387 | 1.38 | 2.25 | 2.25 | 2.00 | Cone | Rubber | Straight | Green |
| 2411 | 3.25 | 6.00 | 5.50 | 4.75 | Cone | Straight | Green | |
| 2439 | 5.30 | 2.26 | 6.38 | 5.67 | Cone | Steel with threaded insert | None | Green |
| 2444 | 5.30 | 2.26 | 6.38 | 5.67 | Cone | Steel with threaded insert | None | Green |
| 2451 | 2.50 | 6.00 | 4.00 | 3.00 | Cone | Straight | Green | |
| 2452 | 4.00 | 7.80 | 7.88 | 4.75 | Cone | Rubber | Straight | Green |
| 2458 | 4.00 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2459 | 3.50 | 6.50 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 2478 | 4.00 | 9.00 | 8.00 | 4.75 | Cone | Straight | Green | |
| 2479 | 4.50 | 9.00 | 7.80 | 4.75 | Cone | Straight | Green | |
| 2499 | 3.63 | 9.00 | 5.50 | 5.50 | Cylinder | Straight | Green | |
| 2737 | 5.30 | 2.26 | 6.38 | 5.67 | Cone | Steel with threaded insert | None | Orange |
| 2738 | 5.30 | 2.26 | 6.38 | 5.67 | Cone | Steel with threaded insert | None | Orange |
| 2743 | 5.41 | 2.50 | 6.48 | 5.64 | Cone | Steel with threaded insert | None | Green |
| 2850 | 3.50 | 6.25 | 5.50 | 4.00 | Cone | Rubber | Straight | Grey |
| 2851 | 4.00 | 9.00 | 5.50 | 4.75 | Cone | Straight | Grey | |
| 2852 | 3.00 | 9.00 | 5.50 | 4.75 | Cone | Straight | Grey | |
| 2853 | 3.00 | 6.00 | 5.50 | 4.00 | Cone | Rubber | Straight | Grey |
| 2854 | 4.00 | 6.00 | 5.50 | 4.00 | Cone | Straight | Grey | |
| 2855 | 3.13 | 6.00 | 5.50 | 4.00 | Cone | Straight | Grey | |
| 2856 | 3.00 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 2857 | 2.50 | 6.00 | 4.00 | 3.00 | Cone | Straight | Grey | |
| 2864 | 4.00 | 7.80 | 7.88 | 4.75 | Cone | Rubber | Straight | Gray |
| 2865 | 4.00 | 9.00 | 8.00 | 4.75 | Cone | Straight | Gray | |
| 2866 | 4.50 | 8.75 | 7.88 | 4.75 | Cone | Straight | Grey | |
| 2881 | 2.50 | 5.00 | 5.88 | 4.75 | Cone | Radius | Grey | |
| 2882 | 2.75 | 5.00 | 5.88 | 5.00 | Cone | Rubber | Radius | Grey |
| 2883 | 3.00 | 5.00 | 5.88 | 5.00 | Cone | Rubber | Radius | Grey |
| 2884 | 2.50 | 5.00 | 6.00 | 4.75 | Cone | Radius | Grey | |
| 2885 | 3.00 | 7.75 | 5.50 | 4.75 | Cone | Straight | Grey | |
| 2886 | 6.00 | 5.50 | 7.50 | 4.75 | Cone | Straight | Grey | |
| 2887 | 3.50 | 9.00 | 5.50 | 4.00 | Cone | Straight | Gray | |
| 2893 | 4.00 | 8.88 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 2894 | 2.75 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 2895 | 3.13 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 2896 | 3.50 | 6.50 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 2897 | 3.00 | 8.88 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 2899 | 4.00 | 6.00 | 5.50 | 4.75 | Dual Cone | Rubber ring | Straight | Grey |
| 4033 | 4.00 | 9.13 | 6.00 | 5.00 | Cone | Rubber | Straight | Red |
| 4034 | 4.00 | 9.13 | 6.00 | 5.00 | Cone | Rubber | Straight | Blue |
| 4042 | 2.50 | 6.88 | 3.50 | 3.50 | Cylinder | Rubber | Straight | Red |
| 4051 | 5.88 | 7.50 | 7.50 | 4.75 | Cylinder | Straight | Grey | |
| 5084 | 5.60 | 8.03 | 7.25 | 5.15 | Cone | Rubber | Straight | Blue |
| 7002 | 5.00 | 12.00 | 6.00 | 6.00 | Cylinder | Rubber | Straight | Green |
| 7014 | 5.00 | 7.75 | 7.88 | 5.00 | Cone | Straight | Green | |
| 7016 | 3.50 x 0.00 | 7.00 | 4.63 | 3.00 | Cone | Rubber | Straight | Green |
| 7019 | 3.50 | 6.00 | 8.69 x 5.69 | 10.81 x 3.94 | Oval Cone | Rubber | Straight | Green |
| 7020 | 3.75 | 6.00 | 8.69 x 5.69 | 10.81 x 3.94 | Oval Cone | Rubber | Straight | Green |
| 7028 | 11.00 x 5.70 | 6.50 | 11.00 x 5.70 | 11.00 x 5.70 | Oval Cylinder | Rubber | Straight | Green |
| 7051 | 4.00 | 9.13 | 6.00 | 5.00 | Cone | Rubber | Straight | Green |
| 7069 | 2.00 | 3.00 | 3.00 | 2.00 | Cone | Rubber | Straight | Green |
| 7079 | 3.00 | 6.00 | 4.25 | 4.00 | Cone | Straight | Green | |
| 7081 | 4.50 | 6.00 | 7.80 | 4.75 | Cone | Rubber | Straight | Green |
| 7090 | 8.00 | 12.00 | 9.50 | 4.00 | Cone | Rubber | Straight | Green |
| 7092 | 2.25 | 5.00 | 6.00 | 5.00 | Cone | Radius | Green | |
| 7121 | 5.63 | 8.13 | 7.38 | 5.25 | Cone | Rubber | Straight | Green |
| 7123 | 7.00 | 8.00 | 8.50 | 5.00 | Cone | Rubber | Straight | Green |
| 7124 | 3.50 | 6.50 | 4.63 | 3.50 | Cone | Rubber | Straight | Green |
| 7129 | 6.00 | 6.00 | 7.50 | 4.75 | Cone | Straight | Green | |
| 7159 | 2.75 | 7.25 | 6.00 | 6.00 | Cylinder | Rubber ring | Straight | Green |
| 7161 | 4.50 | 8.38 | 5.50 | 4.75 | Cone | Rubber | Straight | Green |
| 7164 | 1.25 | 4.00 | 2.75 | 2.50 | Cone | Rubber | Angled | Green |
| 7165 | 3.75 | 6.00 | 6.00 | 4.75 | Cone | Rubber | Straight | Green |
| 7179 | 0.94 x 0.87 | 2.75 | 4.00 x 3.00 | 4.00 x 3.00 | Oval Cylinder | Rubber | None | Green |
| 7180 | 1.27 x 1.11 | 3.12 | 4.00 x 3.50 | 4.00 x 3.50 | Oval Cylinder | Rubber | None | Green |
| 7191 | 2.00 | 6.00 | 4.25 | 3.00 | Cone | Rubber | Straight | Green |
| 7199 | 6.00 | 10.00 | 11.00 x 8.00 | 7.25 x 4.25 | Oval Cone | Rubber | Straight | Green |
| 7201 | 5.50 | 7.75 | 7.75 | 4.75 | Cone | Rubber | Straight | Green |
| 7207 | 4.00 | 7.63 | 7.75 | 4.75 | Dual Cone | Rubber ring | Straight | Green |
| 7208 | 4.00 | 8.40 | 5.50 | 4.75 | Cone | Rubber | Straight | Green |
| 7209 | 4.50 | 12.00 | 5.50 | 4.75 | Cone | Straight | Green | |
| 7210 | 3.50 | 8.00 | 6.00 | 3.50 | Cone | Rubber | Radius | Green |
| 7211 | 3.40 | 11.10 | 4.60 | 4.60 | Cylinder | Rubber | Straight | Green |
| 7212 | 4.00 | 10.50 | 7.75 x 6.25 | 7.75 x 6.25 | Rectangular Dual Cone | Rubber | Angled | |
| 7213 | 0.40 | 2.00 | 2.00 | 2.00 | Cylinder | Rubber | Straight | Green |
| 7214 | 6.00 | 6.50 | 7.50 | 4.75 | Cone | Rubber | Straight | Green |
| 7215 | 8.17 x 6.07 | 2.50 | 8.17 x 6.07 | 8.17 x 6.07 | ||||
| 7219 | 2.75 | 7.00 | 4.75 | 4.00 | Cone | Rubber | Straight | Green |
| 7246 | 3.13 | 6.00 | 5.00 | 3.50 | Cone | Rubber | Straight | Green |
| 7259 | 3.00 | 5.70 | 4.30 | 3.50 | Cone | Rubber | Straight | Green |
| 7260 | 5.00 | 6.00 | 6.00 | 5.00 | Cone | Rubber | Straight | Green |
| 7286 | 3.50 | 6.00 | 6.00 | 4.75 | Cone | Rubber | Straight | Green |
| 7295 | 2.70 | 6.00 | 4.33 | 3.00 | Cone | Rubber | Straight | Green |
| 7301 | 4.63 | 7.88 | 9.00 x 5.80 | 6.38 x 3.50 | Oval Cone | Rubber | Straight | Green |
| 7344 | 8.63 x 3.00 | 6.00 | 20.00 x 5.50 | 0.00 | oval | |||
| 7353 | 3.30 | 5.60 | 5.40 | 5.40 | Cylinder | Rubber | Straight | Green |
| 7363 | 5.60 | 8.03 | 7.25 | 5.15 | Cone | Rubber | Straight | Green |
| 7380 | 2.12 | 4.00 | 3.50 | 2.00 | Cone | Rubber | Straight | Green |
| 7461 | 4.45 | 9.20 | 6.93 x 7.65 | 3.80 x 6.23 | Cone | Rubber | Straight | Green |
| 7464 | 3.00 | 6.70 | 4.75 | 4.75 | Dual Cone | Rubber | Straight | Green |
| 7467 | 2.44 | 6.00 | 3.75 | 5.25 | Dual Cone | Rubber | Angle | Green |
| 7470 | 5.00 | 7.25 | 8.00 | 5.25 | Dual Cone | Rubber | Straight | Green |
| 7474 | 5.00 | 7.25 | 8.00 | 5.35 | Dual Cone | Rubber | Straight | Green |
| 7479 | 3.71 x 3.00 | 5.70 | 5.88 | 5.88 | Cone | Rubber | Straight | Green |
